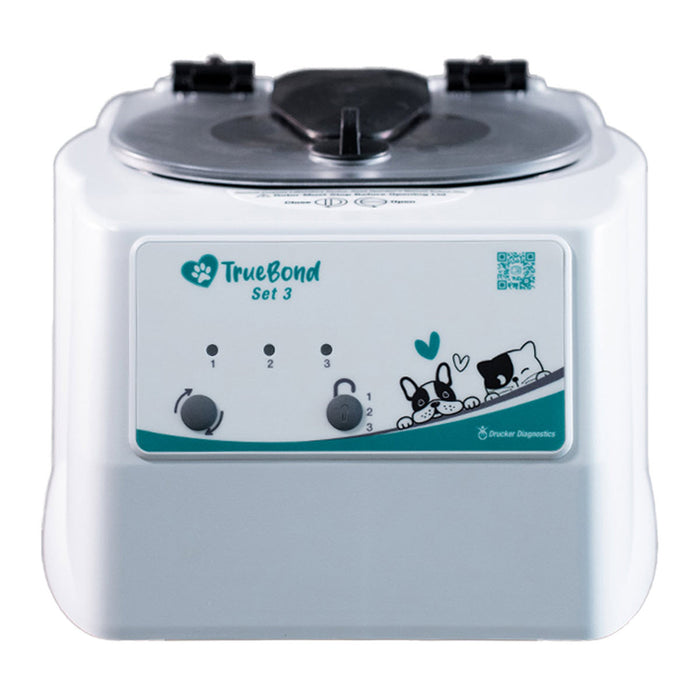

TrueBond Set 3 Veterinary Centrifuge

The TrueBond Set 3 is a veterinary centrifuge designed to spin blood, urine, fecal, and microhematocrit tubes, all in one compact unit. Modeled after the 642E, the world’s best-selling clinical centrifuge, the TrueBond Set 3 features a simple two-button interface and pre-configured cycle settings tailored to common veterinary needs. Its footprint of just over one square foot allows it to fit easily onto any bench or counter, giving your practice the performance it needs without the clutter.

• Max Speed (RPM): Up to 3,900 RPM
• Max Speed (RCF): Up to 1,850 × g
• Max Capacity: 6 samples up to 2 mL, 8 microhematocrit up to 75 mm, 6 samples up to 15 mL
• Dimensions (WxDxH): 12 × 14 × 9 in (30.5 × 35.6 × 22.9 cm)
• Weight: 12 lbs (5.4 kg)
• Warranty: 2 Years (Extended Available)

Centrifuges you can count on

Features

• Out of Box Capacity: 6 samples up to 2 mL, 8 microhematocrit up to 75 mm, 6 samples up to 15 mL
• Tube Sizes: Up to 16 × 100 mm or 10 mL, Up to 16 × 125 mm or 15 mL, Up to MHT 75 mm
• Configurable Capacity: Up to 24 microhematocrit up to 75 mm (with additional adapters)

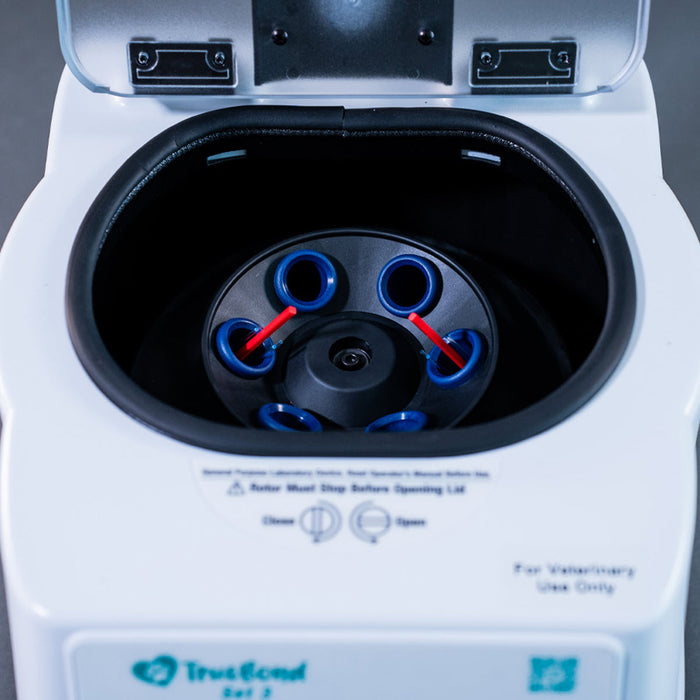

• Fixed Angle: The rotor remains at a 45° angle during sample processing
• Clear Shatter-Proof Lid: Allows for safe sample observation and optical calibrations
• Reinforced Guard Bowl: Provides maximum safety and durability
• Regulatory Approvals: Certified to U.S., Canadian, and European safety regulations and standards

Specifications

• Factory Settings Range: 1 to 30 Minutes (± 1%)
• Voltage: 100–240 VAC (± 10%)
• Frequency: 50/60 Hz

Preset Cycles

• 5 minutes / 2000 RPM / 500 xg
• 6 minutes / 3800 RPM / 1550 xg
• 10 minutes / 3900 RPM / 1650 xg

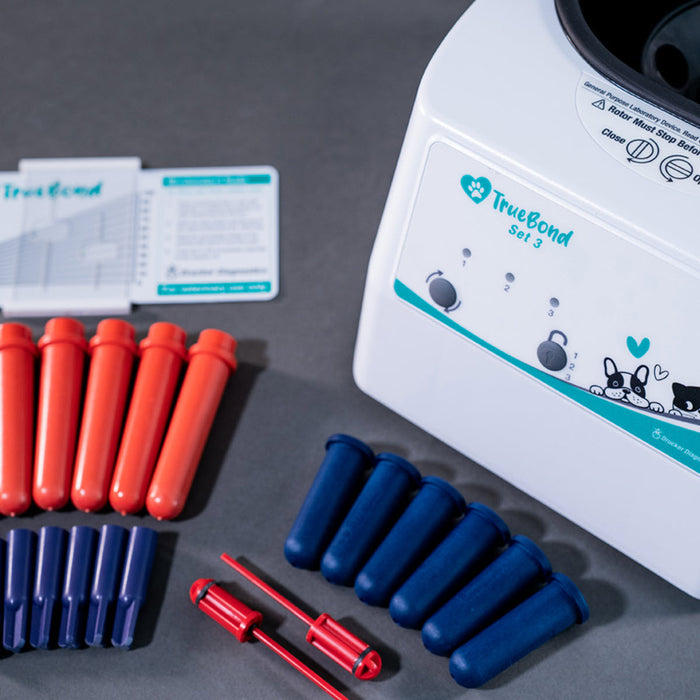

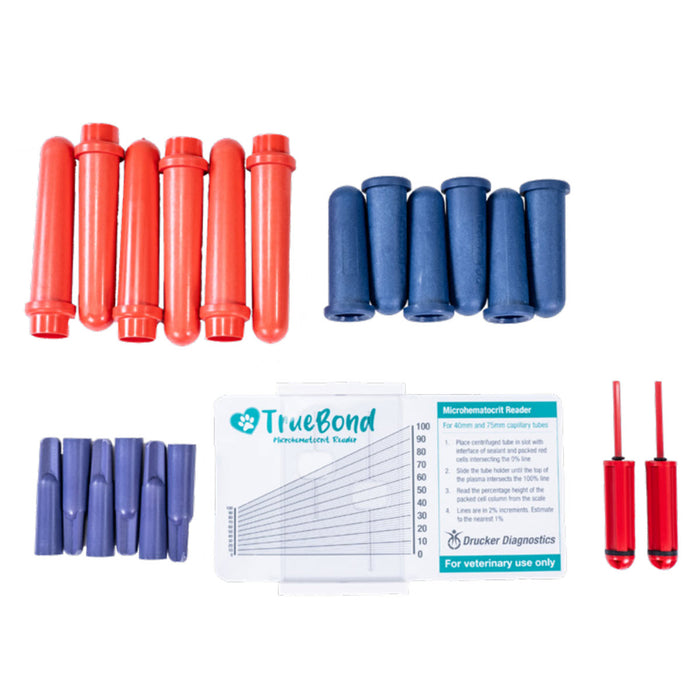

Included

• Fixed Angle Rotor
• Blue Carrier 6 x 16 x 100 mm
• Orange Carrier 6 x 16 x 125 mm
• Microtainer Adapter 6 x 1–1.5 mL
• 2 x Microhematocrit Adapters
• Veterinary Microhematocrit Reader Card
